Electronic Countermeasures (ECM) of Fighter Aircrafts

 Electronic countermeasures (ECM) are critical systems used by fighter aircraft to protect themselves from enemy threats, primarily by disrupting or deceiving enemy radar, communication systems, and guided weapons. These systems enhance aircraft survivability in hostile environments by countering detection and targeting efforts.



What Are Electronic Countermeasures?

Electronic countermeasures are techniques and technologies employed to interfere with an adversary’s electronic systems, such as radar, infrared sensors, and communication networks. ECM is a subset of electronic warfare (EW), which also includes electronic support measures (ESM) and electronic counter-countermeasures (ECCM). ECM systems aim to prevent or degrade the enemy’s ability to detect, track, or engage the aircraft, thereby increasing mission success and pilot safety.

ECM can be broadly categorized into two types:

  1. Active ECM: Involves emitting electromagnetic signals to jam or deceive enemy systems.
  2. Passive ECM: Relies on non-emitting methods, such as deploying chaff or flares, to confuse enemy sensors.

Key Components of ECM in Fighter Aircraft

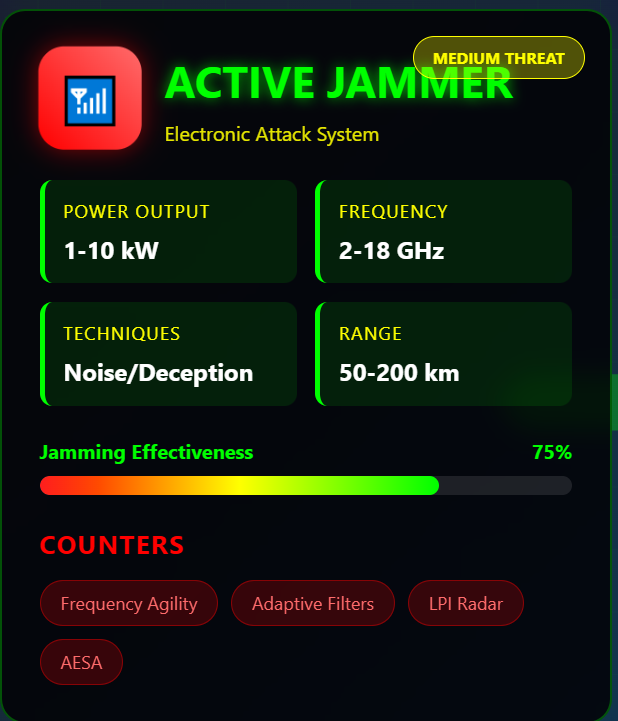

1. Radar Jamming

Radar jamming disrupts enemy radar systems by transmitting noise or false signals, overwhelming or confusing the radar’s ability to detect the aircraft. Modern fighter aircraft, like the F-35 Lightning II or F/A-18E/F Super Hornet, use advanced jammers such as the AN/ALQ-249 Next Generation Jammer. These systems can target multiple radar frequencies simultaneously, making it difficult for enemy air defenses to lock onto the aircraft.


2. Chaff and Flares

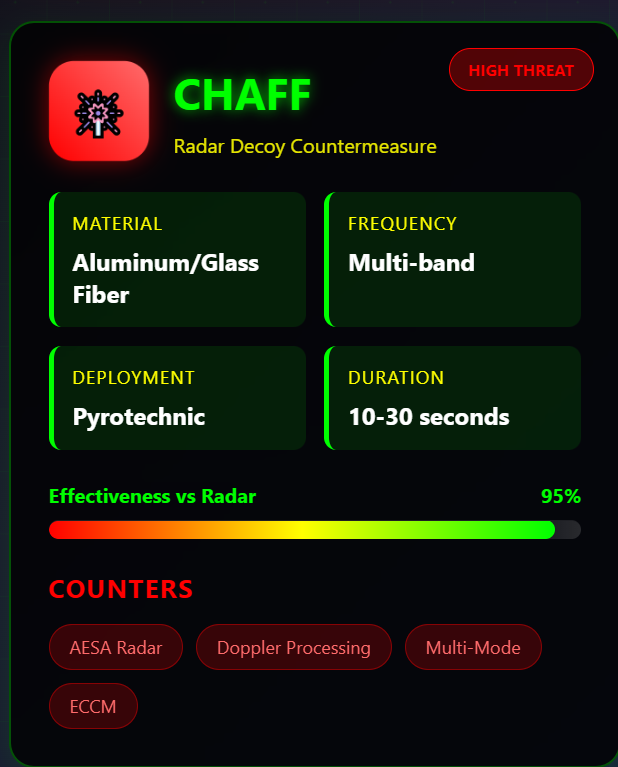

  • Chaff: Consists of small strips of metal or metallized material released from the aircraft to create a cloud of reflective particles. This confuses radar-guided missiles by presenting false targets. Chaff dispensers, like the AN/ALE-47, are standard on many fighter jets.

  • Flares: These are pyrotechnic devices that emit intense heat to decoy infrared (IR)-guided missiles. Flares are effective against heat-seeking missiles, such as the AIM-9 Sidewinder, by providing an alternative heat source to lure the missile away from the aircraft.

3. Infrared Countermeasures (IRCM)

Directed Infrared Countermeasures (DIRCM) systems use laser technology to blind or disrupt the sensors of incoming IR-guided missiles. For example, the AN/AAQ-24 Nemesis system, used on aircraft like the F-16, directs modulated laser beams to confuse missile seekers, causing them to lose track of the aircraft.

4. Electronic Deception

Deception techniques involve transmitting false signals to mislead enemy radar. For instance, “range gate pull-off” manipulates the radar’s timing to make the aircraft appear farther away than it is, causing missiles to miss their target. Modern ECM suites, such as those on the Eurofighter Typhoon, employ sophisticated deception algorithms to counter advanced radar systems.

5. Decoy Systems

Towed or expendable decoys, like the AN/ALE-55 Fiber-Optic Towed Decoy, are used to lure radar-guided missiles away from the aircraft. These decoys mimic the aircraft’s radar signature, drawing the missile to a false target.


Importance of ECM in Modern Air Combat

ECM systems are vital for fighter aircraft operating in contested environments, where adversaries deploy integrated air defense systems (IADS) equipped with advanced radar and missile technology. By disrupting these systems, ECM enables aircraft to:

  • Evade Detection: Reducing the radar cross-section (RCS) through jamming or deception makes it harder for enemies to detect the aircraft.
  • Survive Missile Threats: Chaff, flares, and DIRCM systems protect against radar- and IR-guided missiles.
  • Penetrate Defenses: ECM allows aircraft to operate in heavily defended airspace, supporting missions like suppression of enemy air defenses (SEAD).
  • Enhance Situational Awareness: Integrated with ESM, ECM systems help pilots identify and counter threats in real time.

Challenges and Future Trends

While ECM systems are highly effective, adversaries develop electronic counter-countermeasures (ECCM) to neutralize them. For example, modern radars use frequency hopping to evade jamming. To stay ahead, ECM systems are evolving with:

  • Artificial Intelligence (AI): AI-driven ECM can adapt to new threats in real time by analyzing enemy signals and optimizing countermeasures.
  • Cognitive EW: Systems like those on the EA-18G Growler use machine learning to predict and counter enemy tactics dynamically.
  • Stealth Integration: ECM complements stealth technology, as seen in the F-35, where low-observable features reduce detection, and ECM handles active threats.

References

  1. Kopp, C. (2019). Electronic Warfare Fundamentals. Air Power Australia.
  2. U.S. Air Force. (2023). AN/ALQ-249 Next Generation Jammer Fact Sheet.
  3. Naval Air Systems Command. (2021). AN/AAQ-24 Nemesis DIRCM System Overview.
  4. Federation of American Scientists. (2020). Electronic Warfare Systems in Modern Aircraft.
